Description
game gear ips screen Laminated 3.5" 640x480 HD Retro Pixel IPS LCD Kit For For SEGA Game GearIt's time to upgrade your old power hungry Game Gear screen. This display by Hispeedido is the new standard and has a display area up to 16% bigger than the original. Filled with features and an easier installation process, don't hesitate to upgrade your console now! NOTE: This is NOT the HDMI version. The version with HDMI output is HERE. These screens are compatible with the Hispeedido Shell for Sega Game Gear Laminated Screens Please note that this
It's time to upgrade your old power-hungry Game Gear screen. This display by Hispeedido is the new standard and has a display area up to 16% bigger than the original. Filled with features and an easier installation process, don't hesitate to upgrade your console now!
NOTE: This is NOT the HDMI version. The version with HDMI output is HERE.
These screens are compatible with the Hispeedido Shell for Sega Game Gear Laminated Screens
Please note that this kit requires more soldering than a typical IPS display installation.
Compatibility
Support single-chip (1 ASIC) and dual-chip (2 ASIC) motherboards:
Single chip motherboard 1 ASIC PCB revisions numbers:
- 837-9130
- 837-9024
- 837- 8560
Dual chip motherboard 2 ASIC PCB revisions numbers:
- 837-7996
- 837-7719-01 VA0
- 837-7398-03
Not compatible with:
- Majesco Game Gear VA4 / VA5
- Motherboard with the "MADE IN TAIWAN" mention
Features
- 640x480 display resolution
- No shell trimming required
- Wide View angle up to 178 degrees
- Built-in OSD Menu
- Retro pixel Effects: Normal, Retro pixel, Scanline 1, and Scanline 2
- 5 brightness levels
- 8 color modes
- 3 LCD Aspect Ratio
- Image position is adjustable. No worry about aligning the LCD screen
- FPC connect cable design. Simpler wiring and easier installation.
Included
- 1 x Laminated backlight LCD
- 1 x FPC connect cables
- 1 x Double-sided tape
-
Wires
Warning
This kit will require trimming if installed on an OEM shell.
Documentation

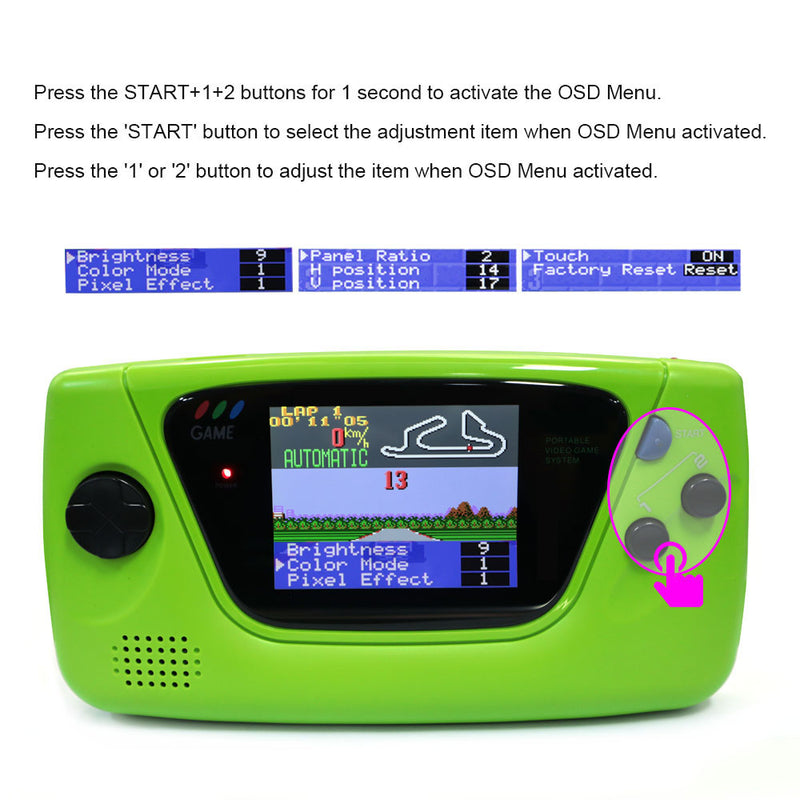

OSD Menu Operation
- Hold down: START, 1, and 2 buttons for 1 second to activate the OSD Menu
- Press the START button to select the adjustment item
- Press the 1 or 2 button to adjust the item
Installation Instructions
